Scissor Lift Trailer
Scissor lifts up to 3.2T
Quick Specs
GVM
2T/3.2T
Carry
1.5T/2.4T
Price From
$4750
ONLY $4750 / $5200INC GST!
CALL NOW TO PLACE YOUR ORDER.
* ON ROAD COSTS ADDITIONAL, CONTACT US FOR DETAILS.
NOTE: Be sure to check the overall weight of your scissor lift before purchase, to ensure it does not exceed trailer GVM.
Suits scissor lifts smaller than 2.4 tonne overall weight including models from Genie, Toyota JCB, XCMG, JLG, and many more.
SCISSOR LIFT TRAILER FEATURES
General
| Build Quality | Heavy duty |
| Galvanised | Yes (hot dipped) |
| Tie-Downs | 4 tie-down lugs |

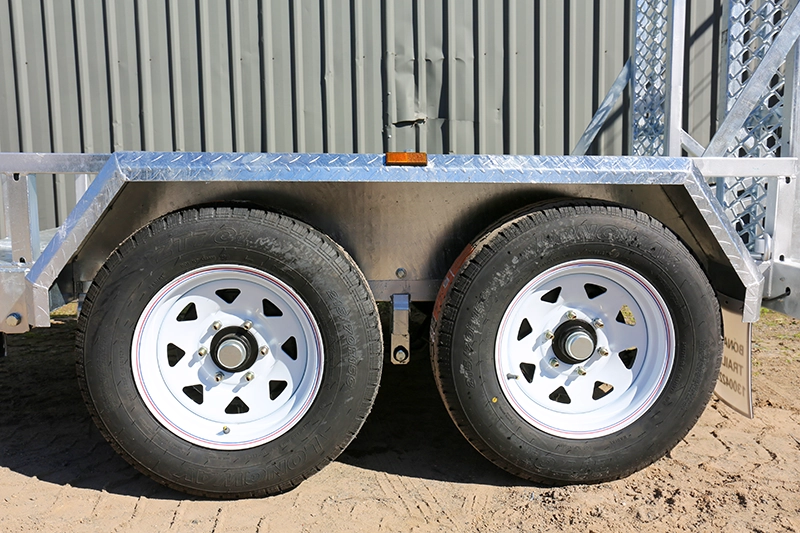

| Wheels | 14″ steel sunraysia and 5 stud pattern |
| Tyres | New steel belted tubeless radial |
| Floor | 2.5mm checker plate |
| Mud Guards | 2.5mm checker plate |

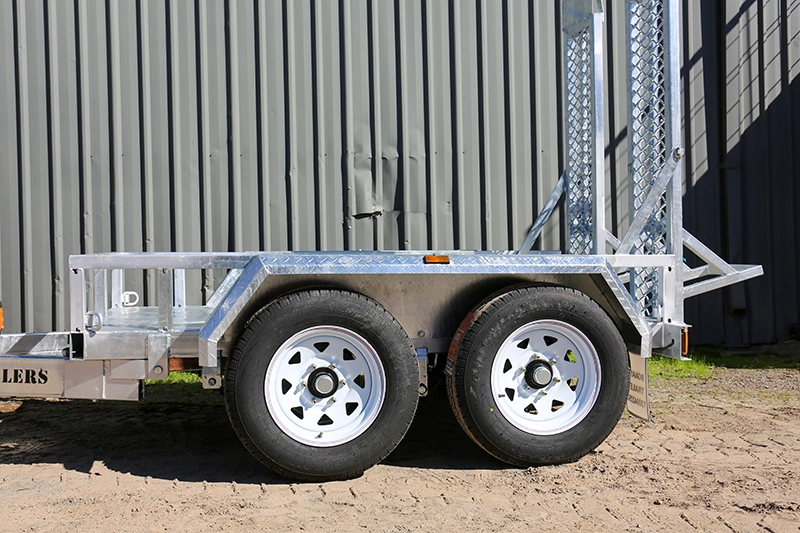

| Axles | 40x40mm solid square drop |
| Suspension | 6 leaf rocker roller / 60x6mm |
| Brakes | Mechanical disc brake |
| Chassis | 50x50mm HD box construction |
Availability (call to confirm)
| Newcastle | 1300 422 922 |
| Perth | 0491 133 191 |
| Sunshine Coast | 07 5453 7960 |
| Brisbane | 07 2106 0600 |
| Delivery | Yes, Australia-wide |
| Phone Order | Yes (see above) |
Size
| Width Between Wheel Guards | 1100 mm |
| Rear to Front | 2450 mm |
| Draw Bar | 100 x 50 x 3 mm |
| Overall Length inc Drawbar | 4030 mm |
| Overall Width inc Wheel Guards | 1780 mm |

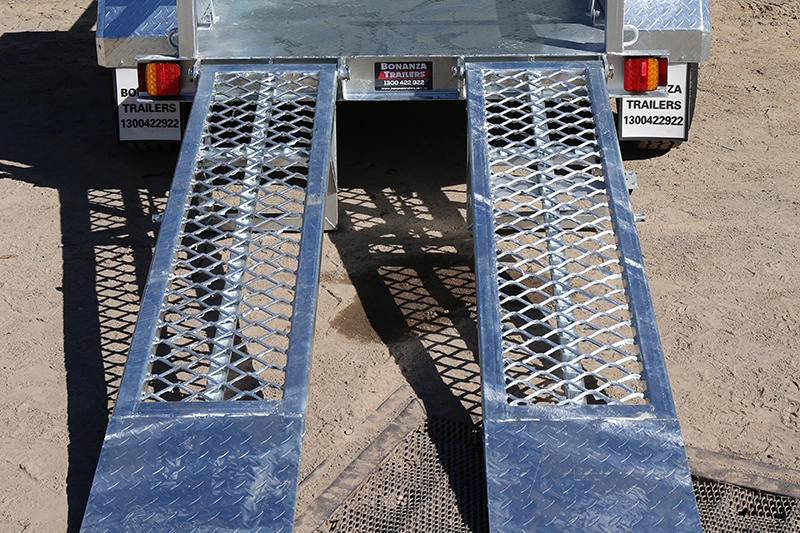

| Ramps L x W | 1700 x 400mm |
| Tare Weight | 480 kg/740kg |
| GVM Capacity | 2,000 kg/3,200 kg |
Electrics
| LED Lights | Yes (Australian Roads Compliant) |
| Plug Type (AR Compliant) | 7 Pin Flat |
Inclusions

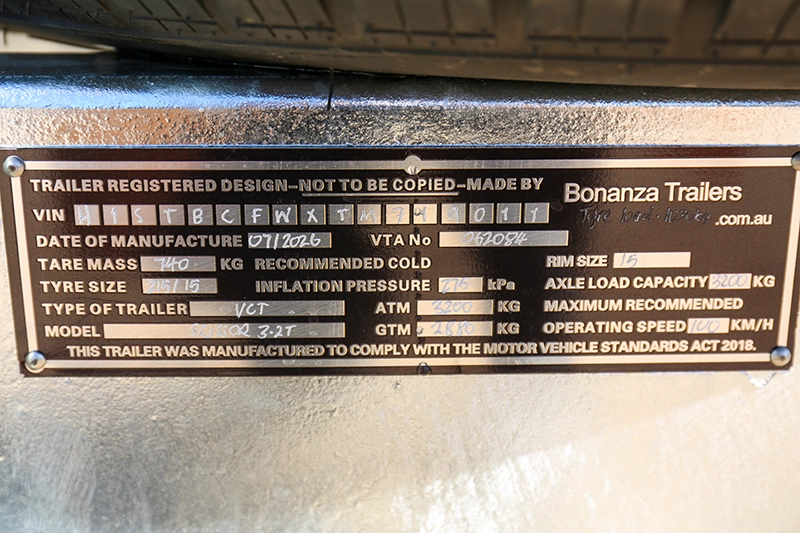

| Compliance Plate | Yes |
| VIN | Yes |
| Spare Wheel | Yes |

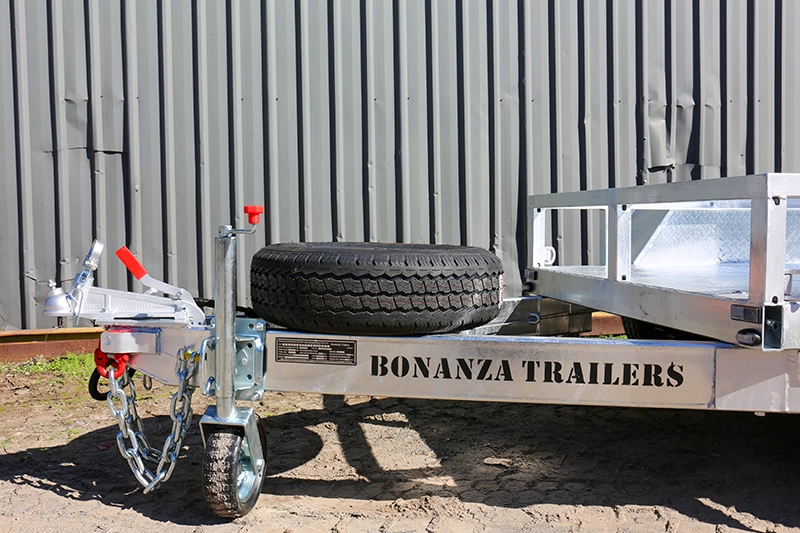

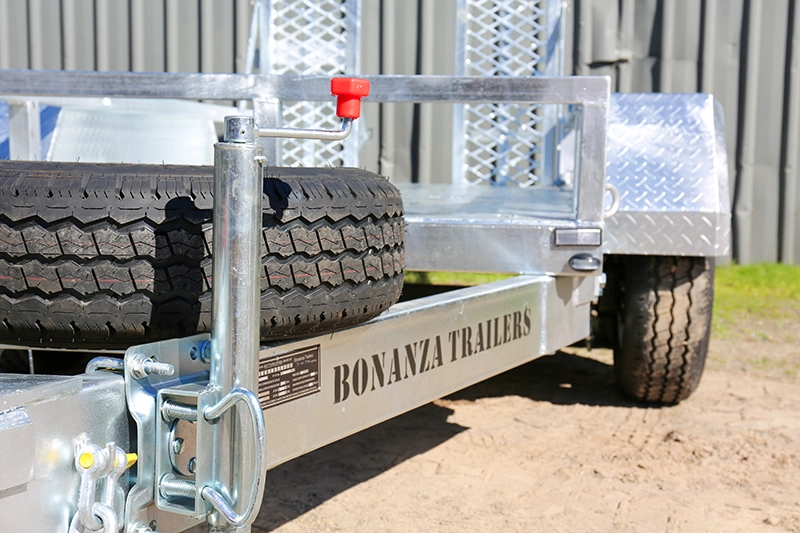

| Jockey Stand | Yes – swing up model |
| Safety | Hammer lock attached safety chains |
| Warranty | 12 months |
Optional Extras
| ARK XO 500 Heavy Duty Jockey Wheel | $380 inc GST |
| ARK XO 750 Off Road Heavy Duty Jockey Wheel | $450 inc GST |
Payment Plans Available!
Payment Plans Available!Purchase on easy payment plans with fast approval through Trailer Pay. Payments from only $61/week, with just a $200 deposit required!
Terms & Conditions apply. Contact Trailer Pay on 1300 998 250 or visit www.trailerpay.com.au to find out more.
SEND AN ENQUIRY OR PLACE AN ORDER
"*" indicates required fields
Suits scissor lifts smaller than 2 tonne overall weight including models from Genie, Toyota JCB, XCMG, JLG, and many more.
