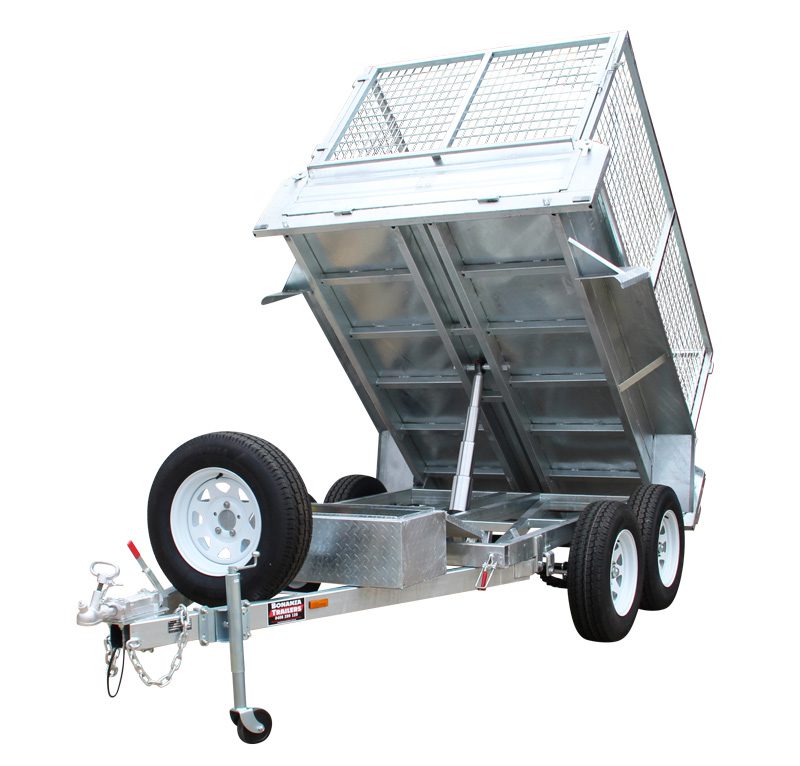

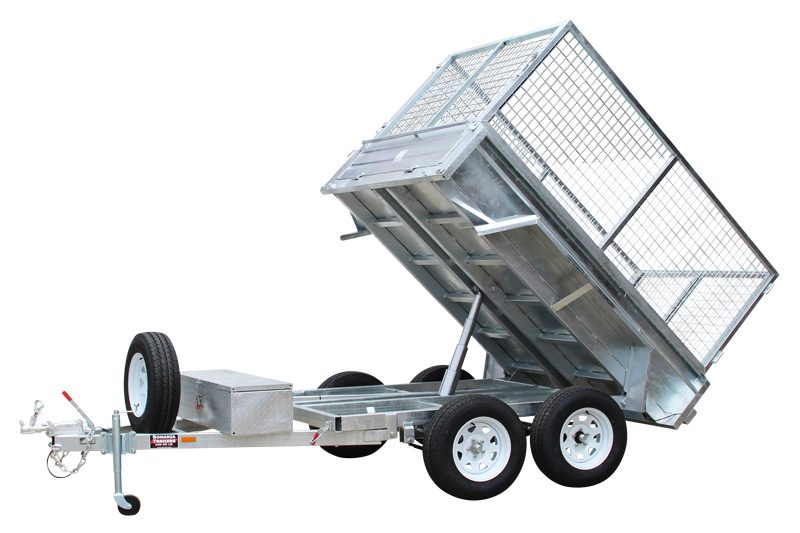

10x5 Hydraulic Tipper Trailer
Our mid-sized Hydraulic Tip Trailer model ideal for general purpose, tradie and farming use.
Quick Specs
Box Size
10 x 5
GVM
3.5T
Hydraulic Ram
4-Stage
Price From
$9900
ONLY $9900 INC GST!
CALL NOW TO PLACE YOUR ORDER.
* ON ROAD COSTS ADDITIONAL, CONTACT US FOR DETAILS.
10×5 HYDRAULIC TIP TRAILER FEATURES
General
| Hydraulic Ram | 4 Stage with pump box & power pack |
| Build Quality | Heavy duty |
| Galvanised | Yes (hot dipped) |
| Rails | Heavy duty tie down, all sides |
| Wheels | 15″ white 6-stud |
| Tyres | New steel belted tubeless radial |
| Floor | 2.5mm checker plate |
| Ramps | Under body slide out ramps |
| Axle | 50mm solid square |
| Suspension | 7 leaf springs rocker / roller |
| Brakes | 12 Inch Electric drum w/ breakaway |
| Chassis | 100x50mm HD box construction |
Optional Extras
| ARK XO 750 Off Road Heavy Duty Jockey Wheel | $450 inc GST |
| DO35 Cruise Master Hitch(3.5T) | $520 inc GST |
| Solar Panel Fitted | $220 inc GST |
| Anderson Plug and Circuit Breaker | $85 inc GST |
Availability (call to confirm)
| Newcastle | 1300 422 922 |
| Perth | 0491 133 191 |
| Sunshine Coast | 07 5453 7960 |
| Brisbane | 07 2106 0600 |
| Delivery | Yes, Australia-wide |
| Phone Order | Yes (see above) |
Size
| Cage Height | 1000 mm (front + rear swing gates) |
| Box Size | 10 x 5 (3.05m x 1.52m) |
| Box Height | 400 mm |
| Tare Weight | 1,200 kg |
| GVM Capacity | 3,500 kg |
| Drawbar | 1800mm, 150x50x5mm |
Electrics
| LED Lights | Yes (Australian Roads Compliant) |
| Plug Type (AR Compliant) | 7 Pin Flat |
Inclusions
| Compliance Plate | Yes (included) |
| VIN | Yes (included) |
| Spare Wheel | Yes (included) |
| Jockey Wheel | Yes (included) – swing up model |
| Safety | Hammer lock attached safety chains |
| Warranty | 12 months |
Price
| 3.5T GVM | $9900 inc GST |
Payment Plans Available!
Payment Plans Available!Purchase on easy payment plans with fast approval through Trailer Pay. Payments from only $66/week, with just a $200 deposit required!
Terms & Conditions apply. Contact Trailer Pay on 1300 998 250 or visit www.trailerpay.com.au to find out more.
