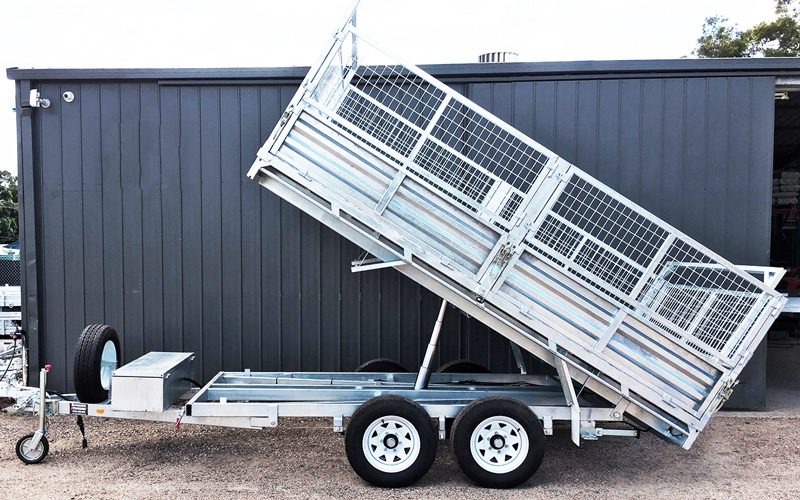

12x7 Hydraulic Tipper (Flat Top)
Our largest Hydraulic Tip Trailer model ideal for tradie, farming, removalist, excavation and waste disposal use.
Quick Specs
Box Size
12 x 7
GVM
3.5T
Hydraulic Ram
5-Stage
Price
$12100
ONLY $12100 INC GST!
CALL NOW TO PLACE YOUR ORDER.
* ON ROAD COSTS ADDITIONAL, CONTACT US FOR DETAILS.
12×7 HYDRAULIC TIP TRAILER FEATURES
General
| Hydraulic Ram | 3.5T 5 Stage with pump box & power pack |
| Quality | Heavy duty |
| Galvanised | Yes (hot dipped) |
| Rails | Heavy duty tie down, all sides |
| Wheels | 15″ white steel 6-stud bolt pattern |
| Tyres | New steel belted tubeless radial |
| Floor | 2.5mm checker plate |
| Axle | 50mm solid square |
| Suspension | 7 leaf springs rocker / roller |
| Brakes | Electric drum w/ breakaway system |
| Chassis | 100x50mm HD box construction |
| Flat Bed | Easily converts to flat bed |
| Gates | Side & rear drop gates (front fixed headboard), all removable, split sides for easy use |
Optional Extras
| ARK XO 750 Off Road Heavy Duty Jockey Wheel | $450 inc GST |
| DO35 Cruise Master Hitch | $520 inc GST |
| Solar Panel Fitted(Build to order) | $220 inc GST |
| Anderson Plug and Circuit Breaker(Build to order) | $85 inc GST |
Availability (call to confirm)
| Newcastle | 1300 422 922 |
| Perth | 0491 133 191 |
| Sunshine Coast | 07 5453 7960 |
| Brisbane | 07 2106 0600 |
| Delivery | Yes, Australia-wide |
| Phone Order | Yes (see above) |
Size
| Cage Height | 600 mm (swing gates all sides) |
| Box Size | 12 x 7 (3.66m x 2.13m) |
| Box Height | 400 mm |
| Tare Weight | 1,400 kg (not inc. ramps + cage) |
| GVM Capacity | 3,500 kg |
| Drawbar | 1700mm, 100x50x4mm box construction |
Electrics
| LED Lights | Yes (Australian Roads Compliant) |
| Plug Type (AR Compliant) | 7 Pin Flat |
Inclusions

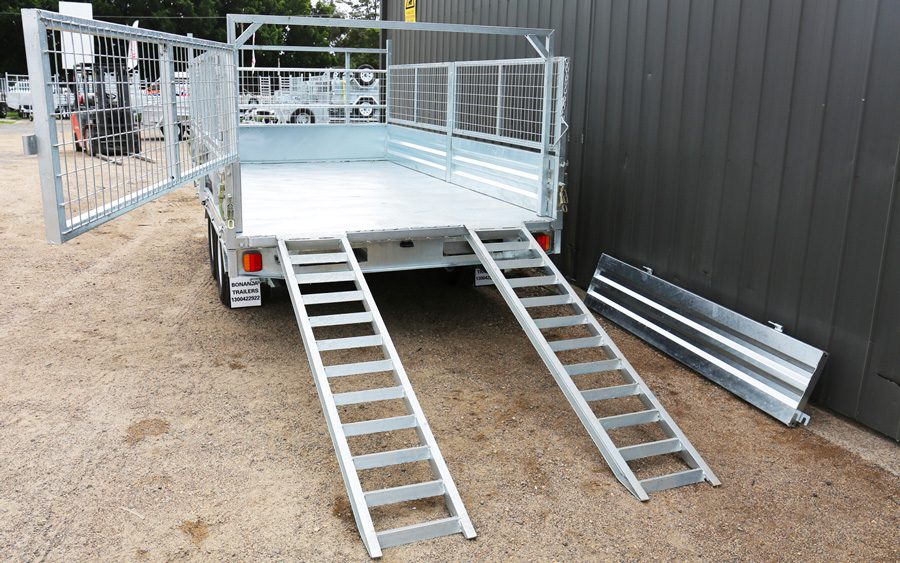

| Under Floor Ramps | Yes – Two |
| Cage | Yes – 600mm |
| Rear Stabiliser Legs | Yes – 2 |
| Compliance Plate | Yes (included) |
| VIN | Yes (included) |
| Spare Wheel | Yes (included) |
| Jockey Wheel | Yes (included) – swing up model |
| Safety | Hammer lock attached safety chains |
| Warranty | 12 months |
