8x5 Box Trailer Heavy Duty
Compact single axle 8x5 box trailer with 1.5 tonne GVM
Quick Specs
Box Size
8 x 5
Side Height
400mm
Cage Height
800mm
Price
$3750
Prev
Next
ONLY $3750 INC GST!
CALL NOW TO PLACE YOUR ORDER.
* ON ROAD COSTS ADDITIONAL, CONTACT US FOR DETAILS.
8×5 HEAVY DUTY BOX TRAILER FEATURES
General
| Build Quality | Heavy duty |
| Galvanised | Yes (hot dipped) |
| Rails | Heavy duty tie down, all sides |

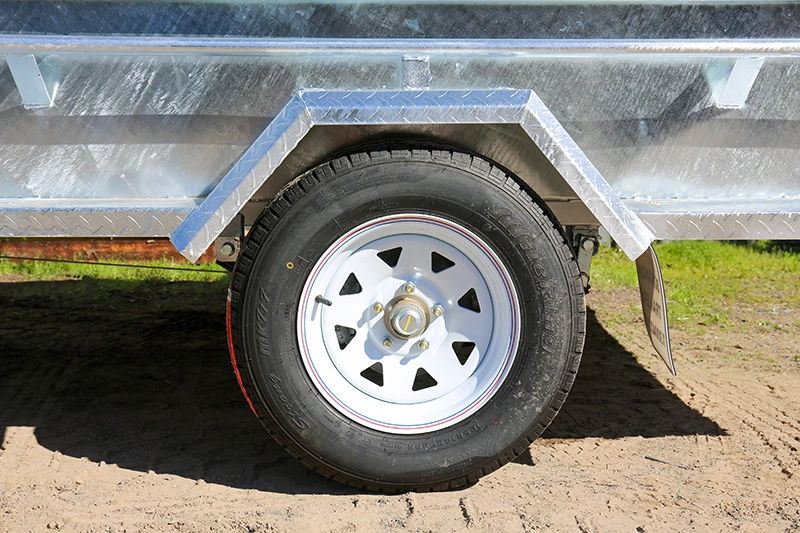

| Wheels | 14 inch white rims, Ford stud pattern |
| Tyres | New steel belted tubeless radial |
| Floor | 2.5mm checker plate |
| Axle | 50mm solid square |
| Suspension | 7 leaf spring for heavy duty use |
| Chassis | 50x50mm box construction |
| Brakes | Mechanical disk |
Optional Extras
| ARK XO 500 Heavy Duty Jockey Wheel | $380 inc GST |
| ARK XO 750 Off Road Heavy Duty Jockey Wheel | $450 inc GST |
| Ramp Gate | $500 inc GST |
| Tradie Top | $2 900 inc GST |
Availability (call to confirm)
| Newcastle | 1300 422 922 |
| Perth | 0491 133 191 |
| Sunshine Coast | 07 5453 7960 |
| Brisbane | 07 2106 0600 |
| Delivery | Yes, Australia-wide |
| Phone Order | Yes (see above) |
Size
| Cage Height | 800 mm (front + rear swing gates) |
| Box Size | 8 x 5 (2.44m x 1.52m) |
| Box Height | 400 mm |
| Tare Weight | 480 kg |
| GVM Capacity | 1500 kg |
| Drawbar | 1400mm, 100x50x3mm box construction |
Electrics
| LED Lights | Yes (Australian Roads Compliant) |
| Plug Type | 7 Pin Flat (AR Compliant) |
Inclusions

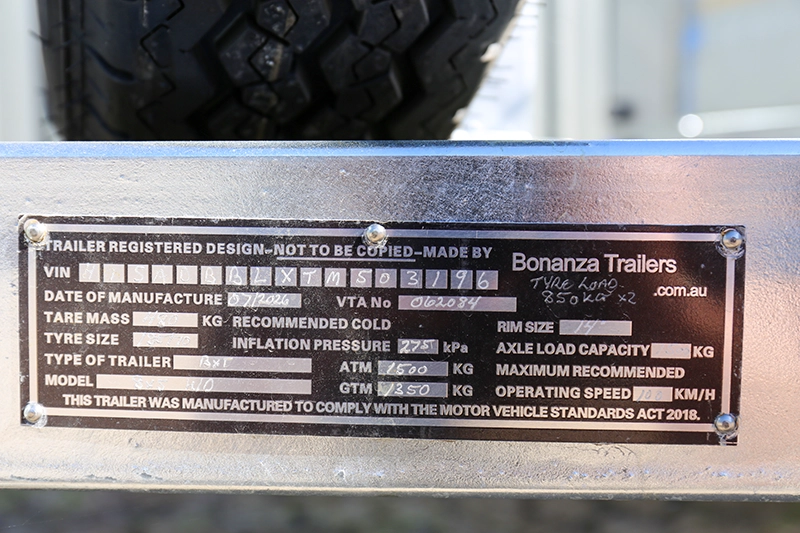

| Compliance Plate | Yes (included) |
| VIN | Yes (included) |

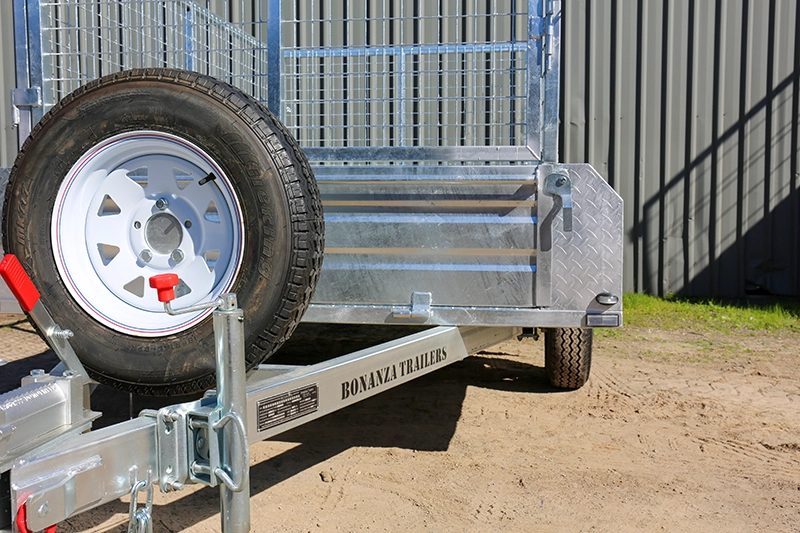

| Spare Wheel | Yes (included) |
| Jockey Wheel | Yes (included) – swing up model |
| Safety | Hammer lock attached safety chains |
| Warranty | 12 months |
Payment Plans Available!
Payment Plans Available!Purchase on easy payment plans with fast approval through Trailer Pay. Payments from only $47/week, with just a $200 deposit required!
Terms & Conditions apply. Contact Trailer Pay on 1300 998 250 or visit www.trailerpay.com.au to find out more.
SEND AN ENQUIRY OR PLACE AN ORDER
"*" indicates required fields
